How the Periodic Table Actually Works (Its Shape Is the Answer)

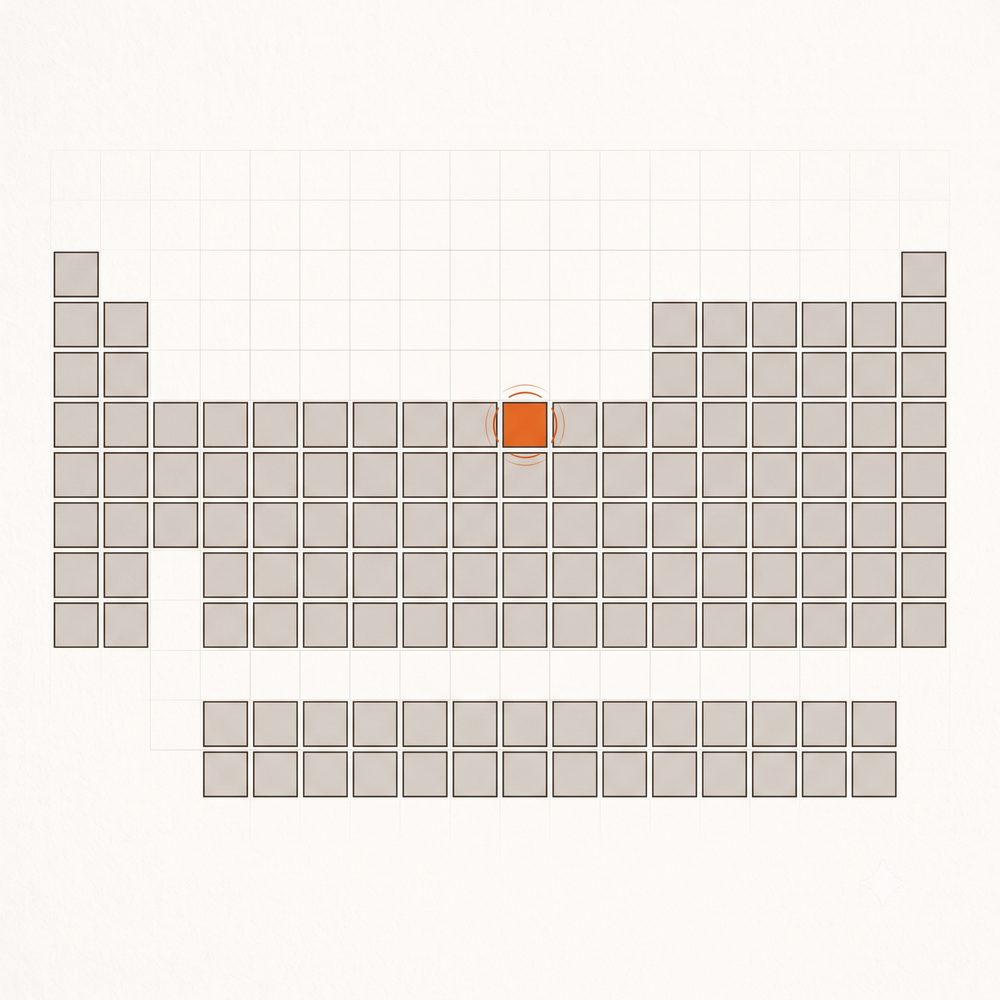

The periodic table looks like someone started building a rectangle and gave up halfway. There's a gap in the top rows, a bulge in the middle, and two lonely rows floating underneath. It looks like a design accident — but every one of those quirks is telling you something real about how atoms are built, and once you can read the shape, the table stops being something to memorise.

It's a Map, Not a List

Here's the thing to understand before anything else: the periodic table was not designed to look tidy. Nobody chose that shape. It's what you get when you sort the elements by their properties and let them fall where they fall.

In 1869 the Russian chemist Dmitri Mendeleev was trying to organise the 63 elements known at the time. He wrote each one on a card with its properties and pushed them around a table like a game of solitaire, looking for a pattern. What he noticed was that if he lined them up in order of mass, similar behaviour kept reappearing at regular intervals — periodically, which is where the name comes from.

Then he did the thing that made him famous. When an element didn't fit the pattern, he refused to force it. He left empty squares, and declared that undiscovered elements would eventually turn up to fill them — and described in advance what they would be like.

For the gap below aluminium he predicted an element with an atomic weight around 68, a density near 6 g/cm³, and an unusually low melting point. In 1875, gallium was discovered: atomic weight 69.7, density 5.91, and a melting point of 29.8 °C — low enough that a lump of it melts in your hand. He'd been right about an element nobody had ever seen.

That's the moment the table stopped being a filing system and became a scientific instrument. A chart you can make predictions from isn't a chart — it's a map of something real.

Groups and Periods: The Columns Are the Important Part

The table has 18 columns, called groups, and 7 rows, called periods. They mean different things, and the columns are where the chemistry lives.

Periods (rows) = how many electron shells the atom has

Electrons don't orbit the nucleus in a jumble. They occupy layers, called shells, and each shell holds a limited number of electrons before it's full. Fill one and the next electron has to start a new shell further out.

The row number tells you how many shells are in use. Everything in period 2 has two shells; everything in period 3 has three. A row ends when a shell fills up — and that is the whole reason the table is shaped the way it is. The first shell holds only 2 electrons, so period 1 has only two elements. The next shells hold 8, so periods 2 and 3 have eight elements each. Deeper shells hold 18 and then 32, which is where the middle bulge and those two detached rows at the bottom come from.

The gap in the top rows isn't a missing piece. It's the honest shape of a shell that only holds two electrons.

Groups (columns) = how many electrons are in the outer shell

This is the part worth actually remembering. Almost all of an element's chemistry is decided by the electrons in its outermost shell — the ones exposed to the outside world. The inner electrons are buried and rarely participate.

Elements in the same column have the same number of outer electrons. That's why they behave alike, and it's why the columns are the useful direction to read.

Take group 1: lithium, sodium, potassium and the rest each have exactly one electron in their outer shell. One spare electron is unstable and easy to give away, so all of them are violently reactive — drop any of them into water and you get a reaction dramatic enough to be a standard classroom demonstration. Not because someone grouped them by how explosive they are, but because they share a structural feature that causes that behaviour.

Now group 17, the halogens: fluorine, chlorine, bromine, iodine. Each has seven outer electrons and needs exactly one more to complete the shell of eight. They're aggressive in the opposite direction — desperate to grab an electron rather than lose one.

Put those two together and you can predict the result without knowing any chemistry. Group 1 has one to give. Group 17 needs one. Sodium hands its spare electron to chlorine, both end up with full outer shells, and they stick together as sodium chloride — table salt. A metal that catches fire in water plus a poisonous green gas, combined into the stuff on your chips. The table told you they'd react before you ever mixed them.

Watch a period fill up

The clearest way to see why rows end where they do is to add electrons one at a time and watch the shells fill.

Notice what happens at helium, neon and argon: the outer shell fills exactly, the readout flips to "full," and the next element starts a fresh row. Those three are the noble gases, and they're the right-hand wall of the table for a structural reason, not a decorative one.

You can explore the same logic across the whole table — every element's shell structure, group and period — with an interactive periodic table.

Why Is It Ordered by Atomic Number, Not Atomic Mass?

Mendeleev sorted by atomic mass, because in 1869 that was the only thing he could measure. And it worked — mostly. But in three places, it broke.

Tellurium is heavier than iodine (127.6 versus 126.9), so by mass it should come second. But tellurium clearly belongs with the group 16 elements and iodine clearly belongs with the halogens, and putting them in mass order shoved both into the wrong columns. The same problem appeared with argon and potassium, and with cobalt and nickel.

Mendeleev made a judgement call that turned out to be exactly right for reasons he couldn't have known: he swapped them anyway, trusting the chemistry over the numbers, and assumed the masses had simply been measured badly. They hadn't. His rule was wrong.

The 26-year-old who fixed it

The answer came in 1913 from Henry Moseley, a young English physicist. Moseley fired electrons at samples of different elements and measured the X-rays that came off. He found that the X-ray frequencies rose in a clean, regular staircase from one element to the next — and that the staircase tracked something other than mass.

What it tracked was the number of protons in the nucleus. That count is the atomic number, and it is what the table is really ordered by.

It resolved every anomaly instantly. Tellurium has 52 protons and iodine has 53, so tellurium genuinely does come first — it just happens to be heavier, because it carries a few extra neutrons. Neutrons add mass without changing an element's identity or its chemistry, which is why mass is a slightly unreliable proxy and proton count is not.

Moseley's discovery also revealed exactly how many elements were still missing, since gaps in the numbering couldn't be hidden. He was killed at Gallipoli two years later, aged 27.

Metals, Non-Metals and Noble Gases

Draw a rough staircase down the right-hand side of the table and you've split it into its three broad territories. All three differences come back to the same thing: what an atom does with its outer electrons.

The force holding those outer electrons in place is the one described by Coulomb’s law. Metals conduct electricity precisely because their outer electrons are loosely held — those electrons can drift between atoms, and a current is nothing more than drifting electrons. The property you can see in a copper wire is a direct consequence of the property that decides where copper sits on the table.

Noble gases are the opposite extreme, and worth understanding properly: they don't react because they have nothing to gain. A full outer shell is the stable arrangement every other element is chasing. The noble gases were born with it.

Three Elements You've Already Used Today

Sodium and chlorine — the salt on your food

Sodium is a soft metal that ignites on contact with water. Chlorine is a choking green gas that was used as a chemical weapon. Both are genuinely dangerous alone. Bond them together, and each one solves the other's problem — sodium loses the electron it didn't want, chlorine gains the one it needed — and the result is so stable and harmless that you sprinkle it on chips.

This is why chemists care about compounds rather than elements. Sodium chloride behaves nothing like either ingredient. Writing that reaction down properly is a first-year exercise in itself — chlorine travels as Cl₂, so the equation needs balancing before the numbers mean anything, which a chemical equation balancer will do for you while you're learning the rules. And if you need how much a compound weighs per mole from its formula, a molar mass calculator does the adding up.

Lithium — the battery in your phone

Lithium sits at the top of group 1: one outer electron, held very loosely, on the lightest metal there is. Giving up an electron easily is exactly what a battery needs a material to do, and being light means you can carry a lot of energy without carrying a lot of weight.

Lithium's position in the table is the reason your phone isn't the size of a brick. It isn't a coincidence that this particular element ended up in every device you own — it's the top-left corner of the map.

Helium and neon — balloons and signs

Helium floats a balloon because it's the second-lightest element. But the reason we put it in balloons handed to children, instead of hydrogen — which is even lighter and much cheaper — is that helium is a noble gas. Full outer shell, no reactions, will not burn. Hydrogen will, which the Hindenburg demonstrated conclusively in 1937.

Neon, one row down the same column, is equally unreactive but glows a distinctive red-orange when electricity runs through it. A neon sign is a group 18 element being useful precisely because it refuses to participate in chemistry.

How to Read the Table From Now On

• Same column = similar behaviour. The single most useful fact on the chart.
• Left side gives electrons, right side takes them. Which is why elements from opposite ends bond so eagerly.
• Far-right column does nothing. Full shells, no chemistry.
• Row number = number of electron shells. Go down a column and you get the same behaviour, just in a bigger atom.
• The shape is data. Every gap and bulge marks where a shell starts or finishes filling.

The Takeaway

The periodic table isn't a list of elements that happens to be arranged in a grid. It's a picture of atomic structure, drawn accidentally — Mendeleev built it decades before anyone knew electrons existed, purely by sorting elements according to how they behaved. When the structure of the atom was finally worked out, it turned out to explain the shape he'd already found.

That's the part worth appreciating. A chemist arranging cards on a desk in 1869 produced a diagram of something he had no way of seeing, and it was right. The table on your classroom wall is the same one, still working.

Explore the table yourself

Tap any of the 118 elements to see its group, period, electron shells and a real-world fact. Free, no sign-up, runs in your browser.
